Saga DLC

Saga DLC | Piratech®

The first elegant framelock work knife Piratech ever made.

As always, not for different to be different but for better to seek different.

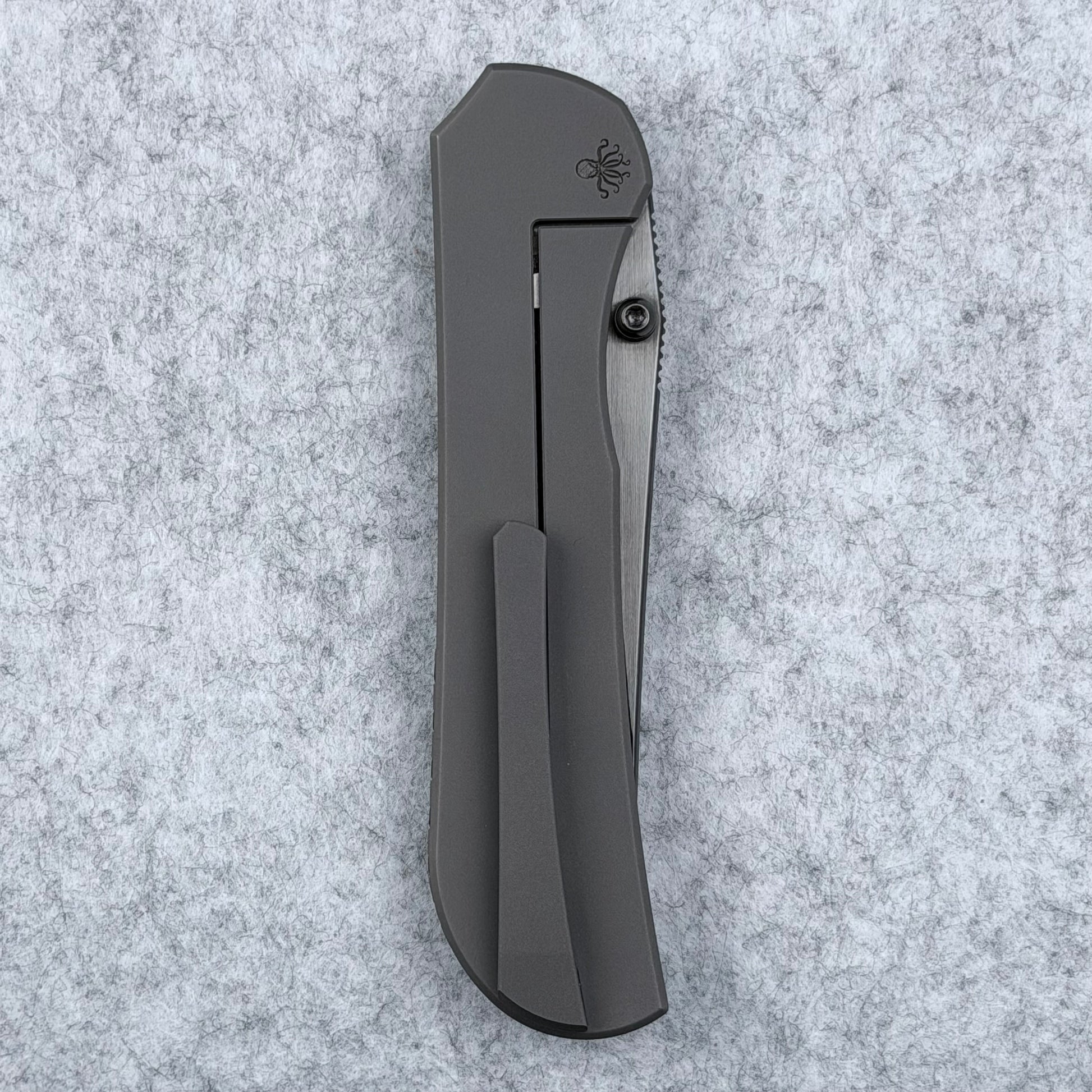

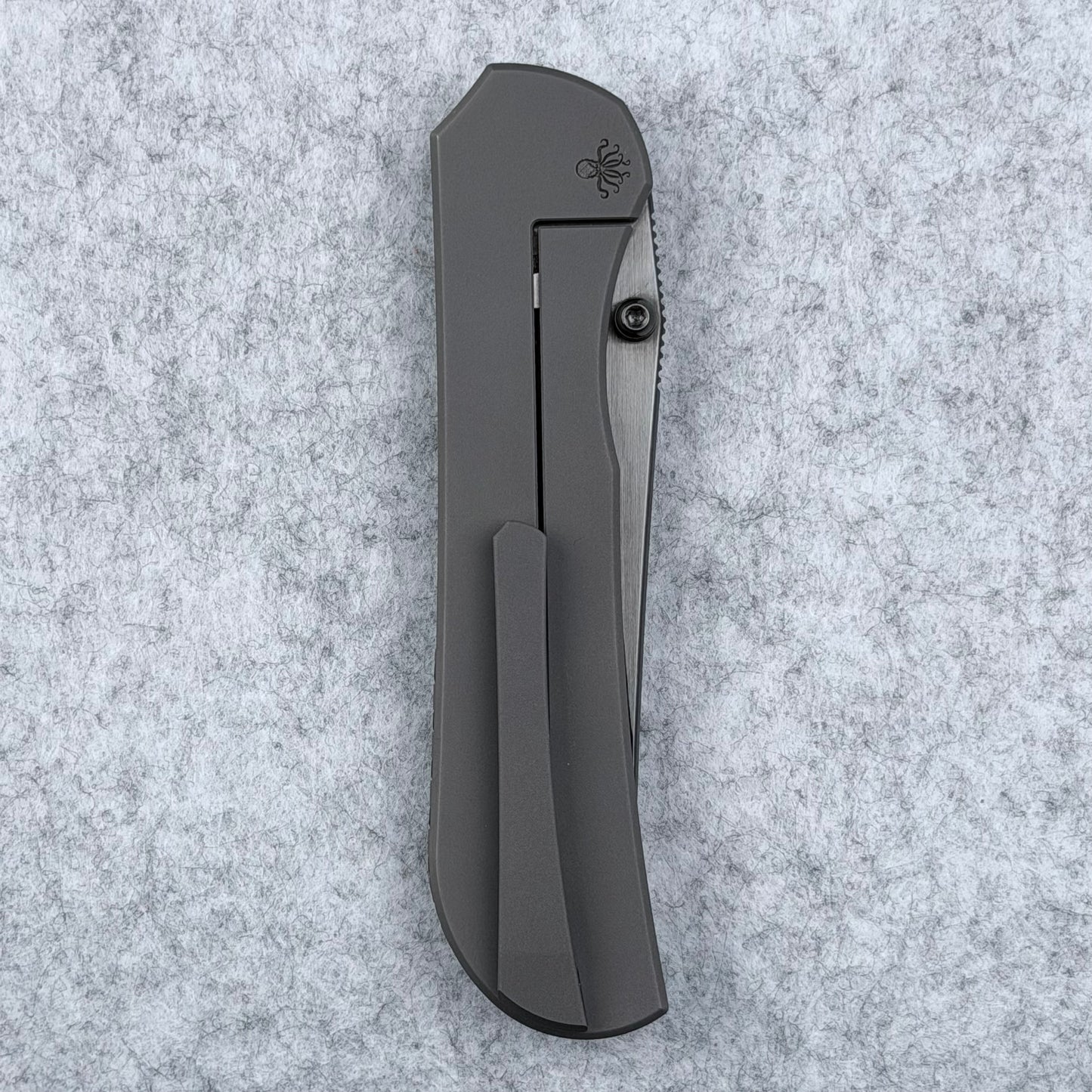

The Saga features what great framelock work knives that have: an exposed lockbar to grip for better safety while working, and a deep, long pocket clip for easy in-and-out of the pocket. Rounded spine and good enough jimping for a nice grip and comfortable use.

The differences to make it better:

No exposed hardware for a clean, elegant look, yet easy access to the hardware underneath for maintenance, thanks to the Magsnap system's magnetic inlay.

All the hardware was designed to drive through the whole knife handle from the show side and screwed into the lockbar side of the titanium handle.

Based on the "Less Is More" principle, pivot and pivot screw are two in one, and with extreme engineering and M4 screw threads, screwed into the titanium lockbar side handle without going through or increasing the thickness of the titanium, but tight enough for use.

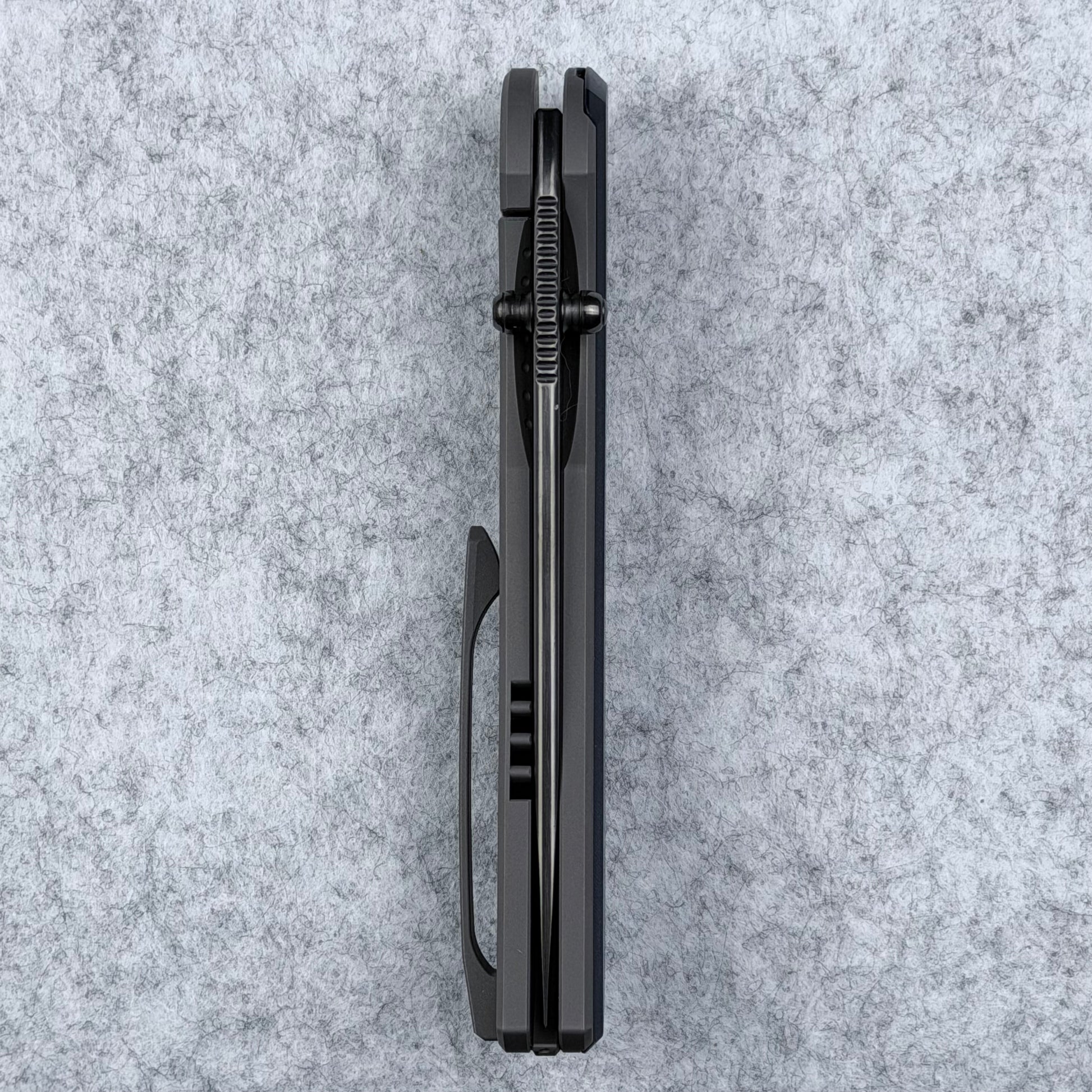

Long lockbar with strong tension for longer leverage to unlock the knife, yet still keep the strong lockup.

No weight is reduced inside the titanium handle for actual work, with more mass to absorb vibration; it provides a solid feel that gives confidence in use.

The milling line on the backspacer was milled with a 5D-CNC machine; the curved line symbolizes a rope that people used to tie knots to pass down stories, and it is perfectly suited to the Saga.

Tie your own knots (create your own life story) with Saga!

• Equipped with a CPM-S90V steel blade for nice edge retention and cutting performance.
• 180-grit Carborundum-blasted finish on the titanium handle and milled clip for a delicate touch.

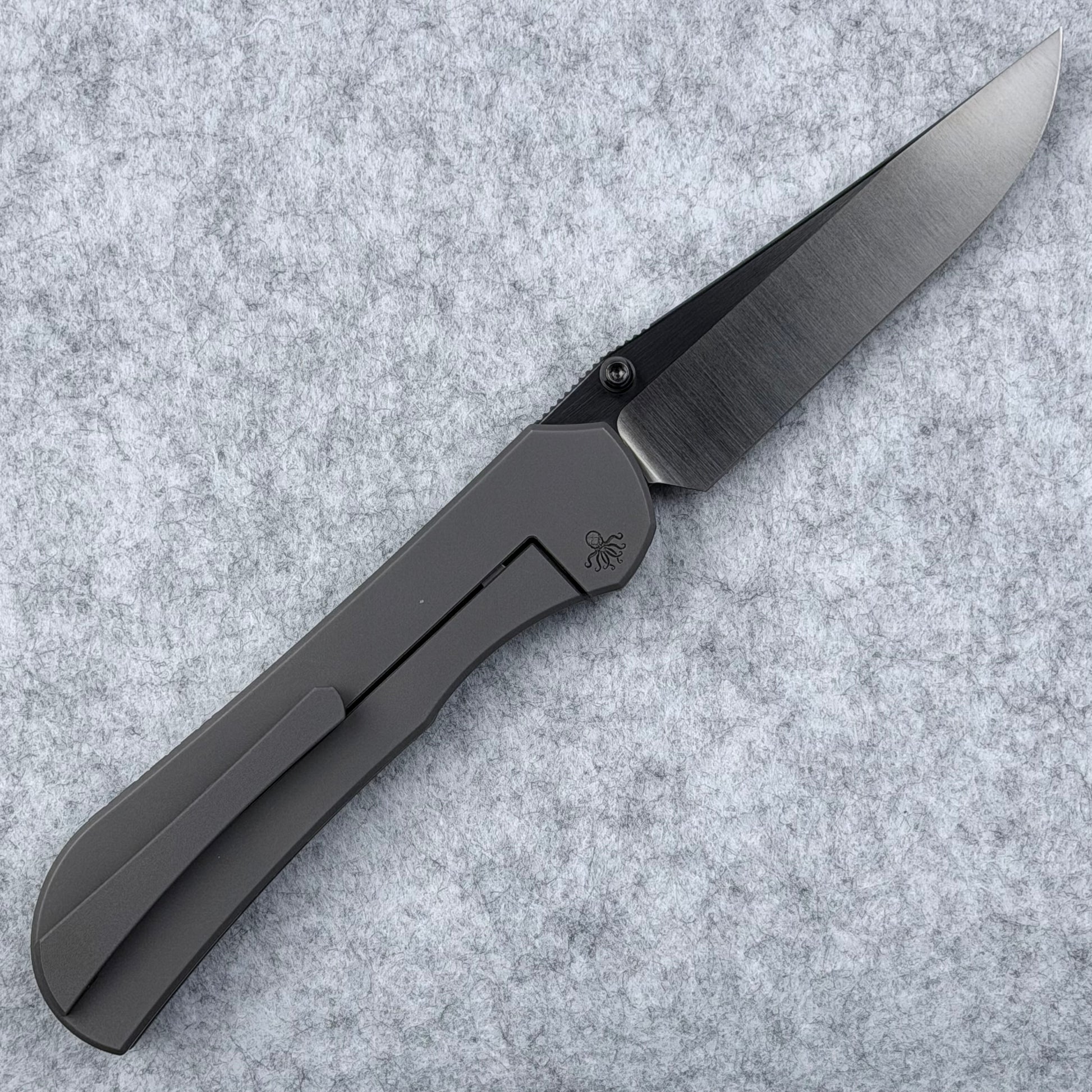

• 3.57" hybrid blade, which is the perfect size for most daily tasks or tough tasks that might be needed.

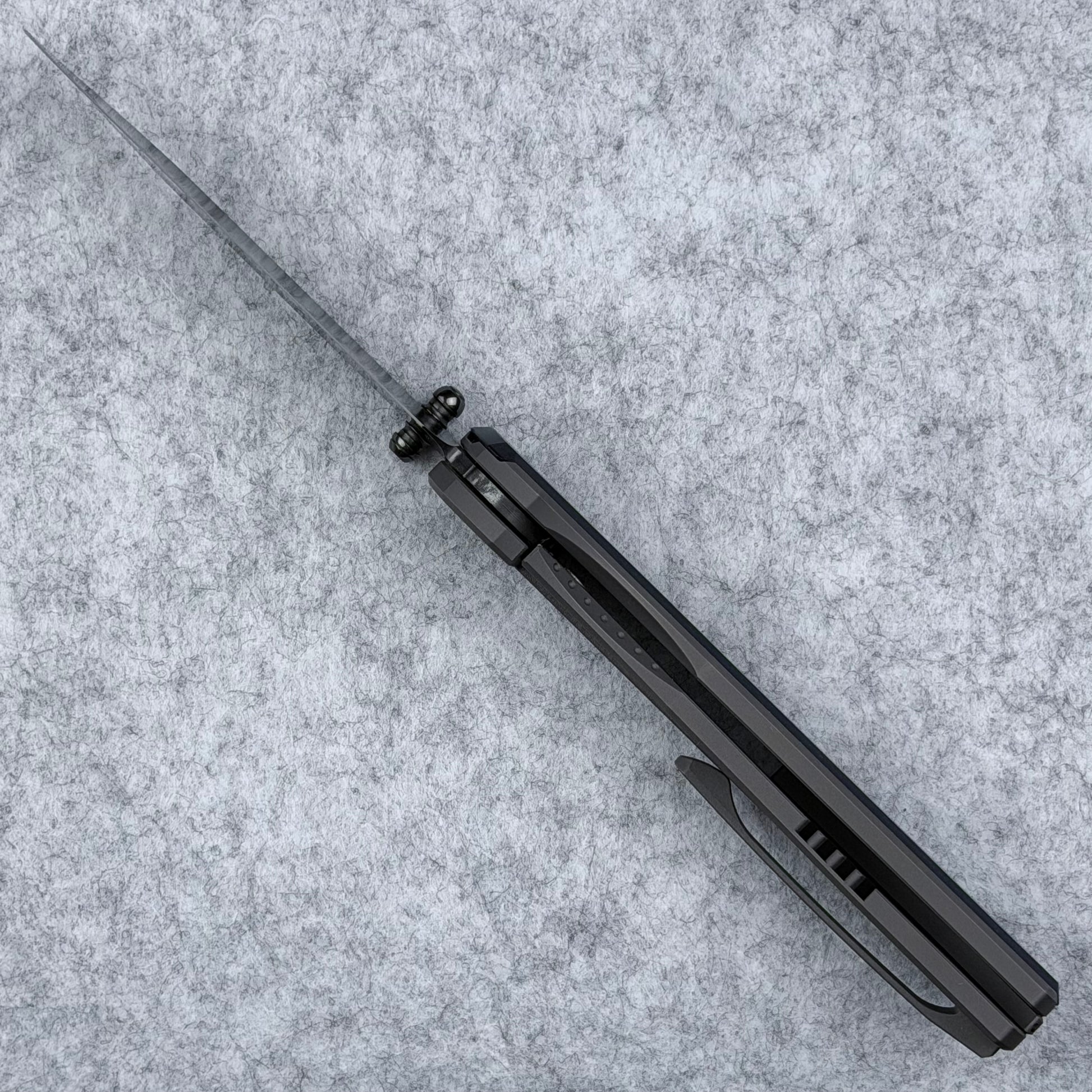

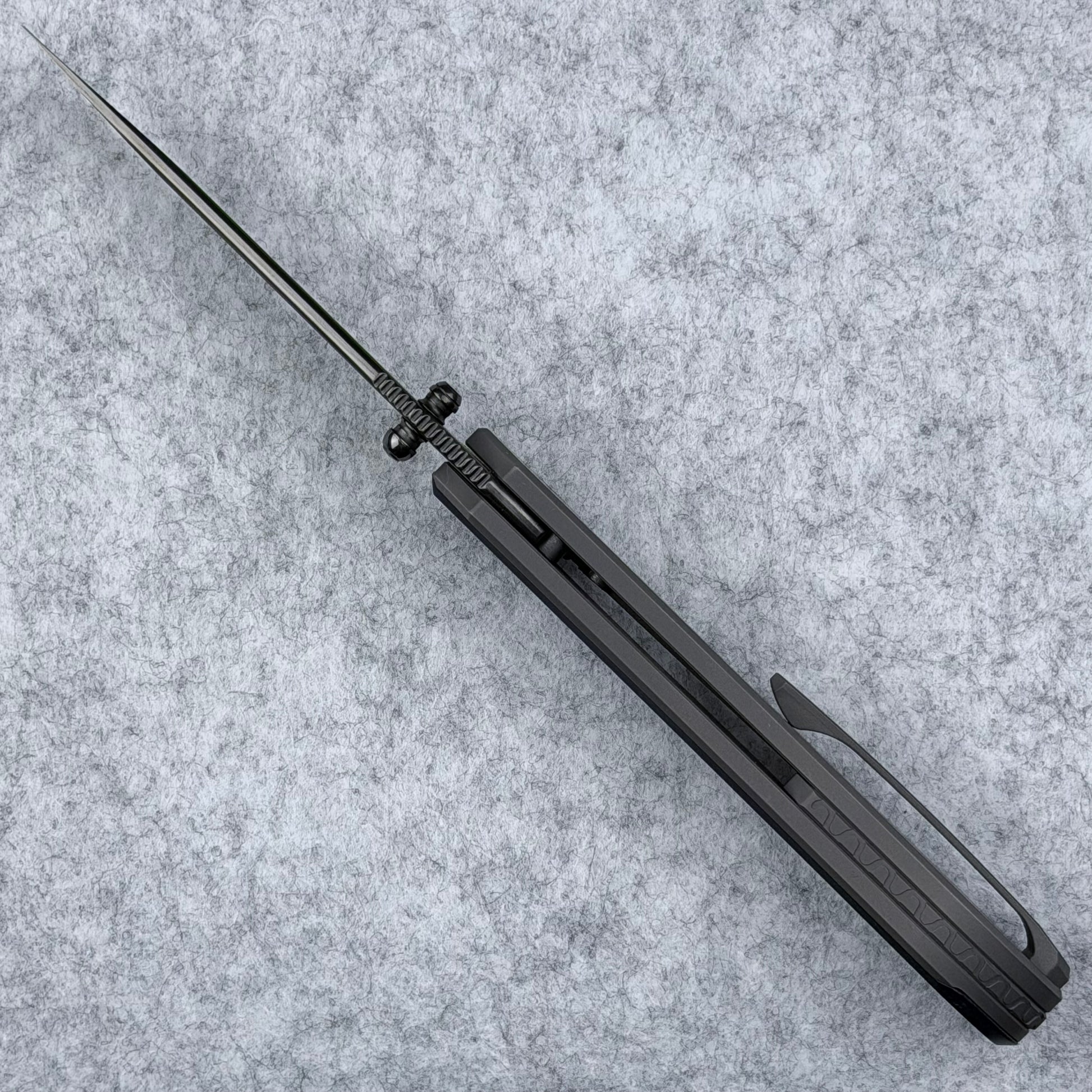

• 0.12"/3.03mm blade thickness hollow grind with crown spine, provides you enough thickness for some heavy use confidence, great cutting performance, and comfort while pushing on the blade spine.
• *CGC points(Cutting Geometry Coefficient) 0.089 (the lower the points, the better the cutting through material performs, read more about it→)

Specification:

• Total length: 8.27"/210mm
• Blade length: 3.57"/90.6mm
• Blade thickness: 0.12"/3.03mm
• Blade width: 0.98"/24.86mm
• CGC*: 0.089
• Blade steel: S90V
• Blade Style: Hybrid, mix of drop point and clip point
• Blade Grind: Hollow
• Blade Finish: Hand strip satin with DLC coating
• Hardness: 61±1 HRC (Comes with a certificate of each knife's independent hardness; there will be 1-3 small dots on the tang of the blade from the HRC test)
• Handle length/Close length: 4.70"/119.5mm
• Handle width: 1.12"/28.5mm

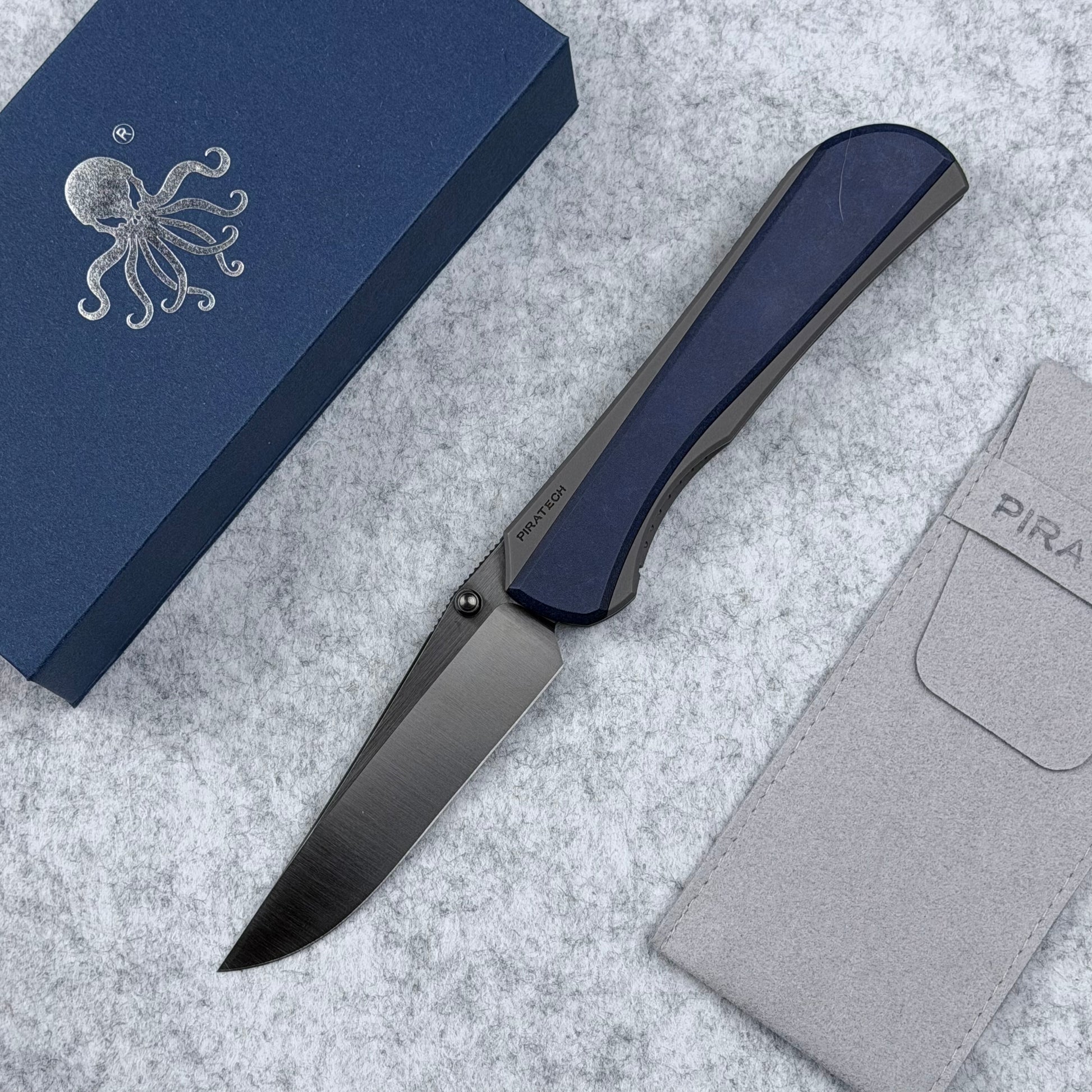

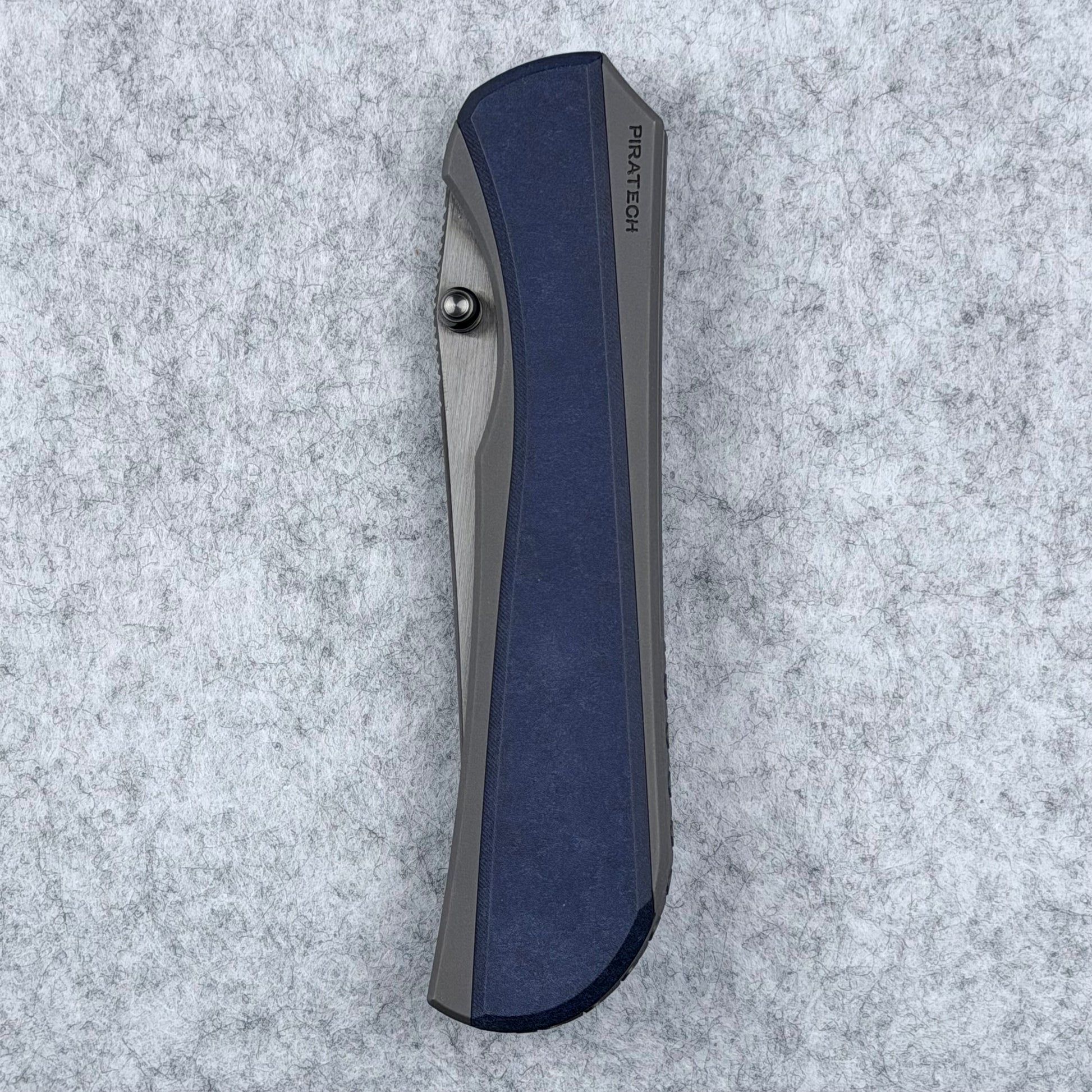

• Handle material: Titanium with Richlite inlay
• Handle finish: 180 grit quartz black bead blasted
• Weight: 4.37oz/124g
